Contrast ratio of Acer ED273UR

Contrast ratio 1709:1
Monitor model Acer ED273UR
Submitted 02 Nov 2023 05:30 CET, by 217.24.*.*
Camera model Pentax K-5
Processing remarks

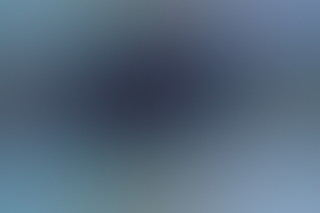

Black
Screen photo
[open image]
Luminance 0.06 cd/m2
Luminance spread 0.05 cd/m2 (2 standard deviations)
Exposure value –3.31 stops   (aim for –2 to –3)
Exposure spread 1.49 stops
Area used for calculation 0.583 x 0.656
Camera settings Exposure time: 3   ISO: 400   F-number: 2.8
Focal length: 42 mm   (35 mm equivalent)
Exposure compensation: 0

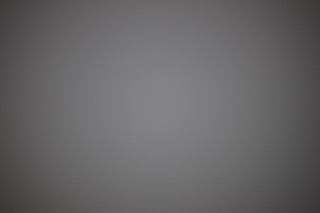

White
Screen photo
[open image]
Luminance 96 cd/m2
Luminance spread 31 cd/m2 (2 standard deviations)
Exposure value –2.48 stops   (aim for –2 to –3)
Exposure spread 0.47 stops
Area used for calculation 0.583 x 0.656
Camera settings Exposure time: 1/320   ISO: 400   F-number: 2.8
Focal length: 42 mm   (35 mm equivalent)
Exposure compensation: 0
{adcode}

The luminance values in cd/m2 are not very reliable, since camera sensitivities can easily differ up to 50% from their nominal value. Typically, the real luminance is 30% lower than this number. The area used for calculation is chosen such that it corresponds to a viewing angle of ±14° horizontally and ±10.5° vertically, which is equivalent to viewing the screen from a distance of about 1.5 times the diagonal size.

Unfortunately, there is a lot of variation in how cameras use EXIF settings. If photos from your camera your produce unusable results, try coming back in a few days. I review submitted pictures regularly and try to fix problems.
