Contrast ratio of NEC MultiSync 20WGX2

Contrast ratio 521:1 (edge: 667:1)
Monitor model NEC MultiSync 20WGX2
Submitted 13 Jan 2012 21:56 CET, by 217.118.*.*
Camera model Panasonic DMC-TZ7
Processing remarks

Note: image file 2: suggested exposure time: 1/280 s (Set EV to -0.8)
Note: image file 3: suggested exposure time: 2.4 s (Set EV to +2.2)

Black
Screen photo
[open image]
Luminance 0.22 cd/m2
Luminance spread 0.07 cd/m2 (2 standard deviations)
Exposure value –3.38 stops   (aim for –2 to –3)
Exposure spread 0.47 stops
Area used for calculation 0.361 x 0.361
Camera settings Exposure time: 1   ISO: 400   F-number: 3.3
Focal length: 25 mm   (35 mm equivalent)
Exposure compensation: 1

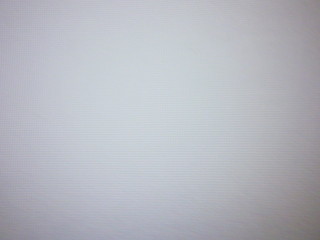

White
Screen photo
[open image]
Luminance 116 cd/m2
Luminance spread 10 cd/m2 (2 standard deviations)
Exposure value –0.68 stops   (aim for –2 to –3)
Exposure spread 0.13 stops
Area used for calculation 0.361 x 0.361
Camera settings Exposure time: 1/80   ISO: 400   F-number: 3.3
Focal length: 25 mm   (35 mm equivalent)
Exposure compensation: 1
Black at screen edge
Screen photo
[open image]
Luminance 0.17 cd/m2
Luminance spread 0.05 cd/m2 (2 standard deviations)
Exposure value –3.74 stops   (aim for –2 to –3)
Exposure spread 0.4 stops
Area used for calculation 0.361 x 0.361
Camera settings Exposure time: 1   ISO: 400   F-number: 3.3
Focal length: 25 mm   (35 mm equivalent)
Exposure compensation: 1

The luminance values in cd/m2 are not very reliable, since camera sensitivities can easily differ up to 50% from their nominal value. Typically, the real luminance is 30% lower than this number. The area used for calculation is chosen such that it corresponds to a viewing angle of ±14° horizontally and ±10.5° vertically, which is equivalent to viewing the screen from a distance of about 1.5 times the diagonal size.

Unfortunately, there is a lot of variation in how cameras use EXIF settings. If photos from your camera your produce unusable results, try coming back in a few days. I review submitted pictures regularly and try to fix problems.
