Contrast ratio of Dell 2209w

Contrast ratio 733:1
Monitor model Dell 2209w
Submitted 26 Sep 2010 23:48 CEST, by 99.246.*.*
Camera model Fujifilm FinePix F50fd
Processing remarks

Note: image file 1: suggested exposure time: 1.2 s (Set EV to +1.0)

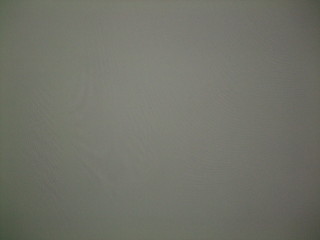

Black
Screen photo
[open image]
Luminance 0.24 cd/m2
Luminance spread 0.09 cd/m2 (2 standard deviations)
Exposure value –3.55 stops   (aim for –2 to –3)
Exposure spread 0.58 stops
Area used for calculation 0.501 x 0.501
Camera settings Exposure time: 0.6   ISO: 400   F-number: 2.8
Focal length: 34.7 mm   (35 mm equivalent)
Exposure compensation: 0

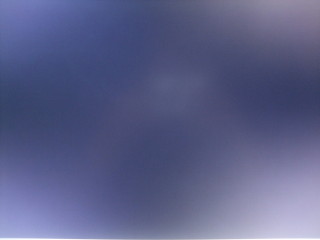

White
Screen photo
[open image]
Luminance 175 cd/m2
Luminance spread 28 cd/m2 (2 standard deviations)
Exposure value –2.29 stops   (aim for –2 to –3)
Exposure spread 0.23 stops
Area used for calculation 0.501 x 0.501
Camera settings Exposure time: 1/512   ISO: 400   F-number: 2.8
Focal length: 34.7 mm   (35 mm equivalent)
Exposure compensation: 0

The luminance values in cd/m2 are not very reliable, since camera sensitivities can easily differ up to 50% from their nominal value. Typically, the real luminance is 30% lower than this number. The area used for calculation is chosen such that it corresponds to a viewing angle of ±14° horizontally and ±10.5° vertically, which is equivalent to viewing the screen from a distance of about 1.5 times the diagonal size.

Unfortunately, there is a lot of variation in how cameras use EXIF settings. If photos from your camera your produce unusable results, try coming back in a few days. I review submitted pictures regularly and try to fix problems.
