Contrast ratio of Samsung C24F390 (max bright)v2

Contrast ratio 727:1 (edge: 662:1)
Monitor model Samsung C24F390 (max bright)v2
Submitted 10 Apr 2018 03:06 CEST, by 90.94.*.*
Camera model samsung SM-G930F
Processing remarks


Black
Screen photo
[open image]
Luminance 0.29 cd/m2
Luminance spread 0.07 cd/m2 (2 standard deviations)
Exposure value –2.09 stops   (aim for –2 to –3)
Exposure spread 0.34 stops
Area used for calculation 0.345 x 0.46
Camera settings Exposure time: 0.5   ISO: 400   F-number: 1.7
Focal length: 26 mm   (35 mm equivalent)
Exposure compensation: 0

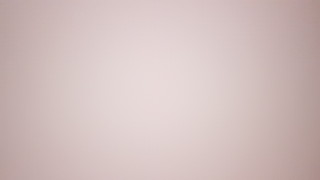

White
Screen photo
[open image]
Luminance 211 cd/m2
Luminance spread 21 cd/m2 (2 standard deviations)
Exposure value –0.54 stops   (aim for –2 to –3)
Exposure spread 0.14 stops
Area used for calculation 0.345 x 0.46
Camera settings Exposure time: 1/498   ISO: 400   F-number: 1.7
Focal length: 26 mm   (35 mm equivalent)
Exposure compensation: 0
Black at screen edge
Screen photo
[open image]
Luminance 0.32 cd/m2
Luminance spread 0.11 cd/m2 (2 standard deviations)
Exposure value –1.95 stops   (aim for –2 to –3)
Exposure spread 0.51 stops
Area used for calculation 0.345 x 0.46
Camera settings Exposure time: 0.5   ISO: 400   F-number: 1.7
Focal length: 26 mm   (35 mm equivalent)
Exposure compensation: 0

The luminance values in cd/m2 are not very reliable, since camera sensitivities can easily differ up to 50% from their nominal value. Typically, the real luminance is 30% lower than this number. The area used for calculation is chosen such that it corresponds to a viewing angle of ±14° horizontally and ±10.5° vertically, which is equivalent to viewing the screen from a distance of about 1.5 times the diagonal size.

Unfortunately, there is a lot of variation in how cameras use EXIF settings. If photos from your camera your produce unusable results, try coming back in a few days. I review submitted pictures regularly and try to fix problems.
